China Geotextile Membrane
Material:PET/PP
Surface:Filament/Short Fiber
Width:1-6m
Length:50/100/150/200/Customized
Weight:100-1200gsm
China Geotextile Membrane
China geotextile membrane are permeable synthetic fabrics, made primarily from polypropylene or polyester. When used in association with soil, they have the ability to separate, filter, reinforce, protect, or drain. Their versatility and cost-effectiveness make them an essential component in modern civil, environmental, and geotechnical engineering projects.
China Geotextile Membrane
The Key Functions of China Geotextile Membrane
Separation
Prevents the intermixing of dissimilar soil layers, such as subsoil and aggregate. By maintaining the integrity of each layer, China geotextile membrane significantly extend the service life of roads, parking lots, and railway embankments, reducing long-term maintenance costs.
Filtration
Allows water to flow through the fabric while retaining soil particles. This crucial function prevents erosion and ensures the stability of drainage systems, riverbanks, coastal revetments, and retaining walls.
China Geotextile Membrane
Reinforcement
Through high tensile strength, China geotextile membrane add stability to soil, enabling the construction of steep slopes, reinforced earth walls, and embankments over soft ground. They distribute loads more efficiently, improving overall structural capacity.
Drainage
Acts as a conduit for the in-plane flow of water and gases, effectively relieving hydrostatic pressure behind retaining walls or in sport fields, thereby enhancing structural stability.
China Geotextile Membrane’s Specifications
|
Product Name
|
China Geotextile Membrane
|
|
Material
|
polyester or pp or mixed or recycled
|
|
Surface
|
both sides smooth / both sides textured / one side smooth, the other side textured / as your request
|
|
Thickness
|
1mm – 5.0mm
|
|
Size
|
Width: 4M – 10M
Length: 50M – 200M (or as request)
|
|
Color
|
Black, White, Blue, Green, Grey , etc
|
|
MOQ
|
1000sqm per thickness
|
|
Certificate
|
CE / ISO 9001
|
|
Packing
|
In PP woven bag or as request
|
|
Samples
|
Free samples available
|
|
Delivery Time
|
about 15 days after received the 30% deposit
|
China Geotextile Membrane’s Applications
China geotextile membrane sed to separate,filter,reinforce, protect or drain. China geotextile membrane are commenly used to separate layers like clay and drainage and to protect liner from damage.

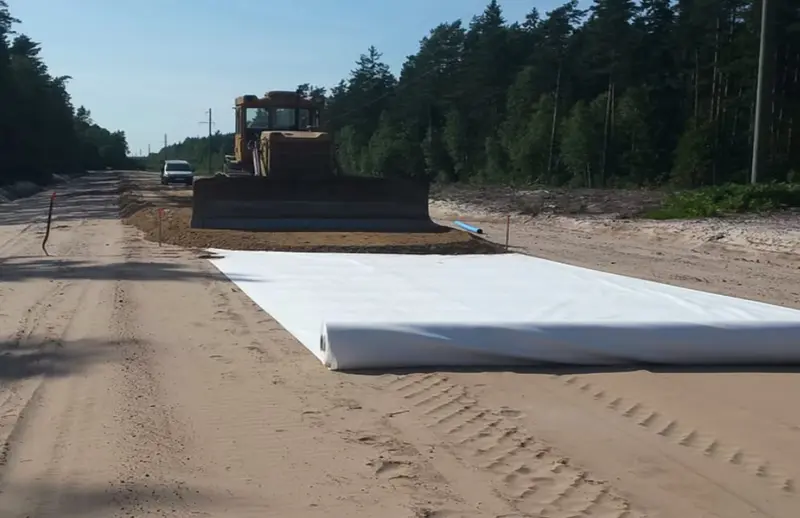

Road & Pavement Construction
Railway Track Bed Stabilization

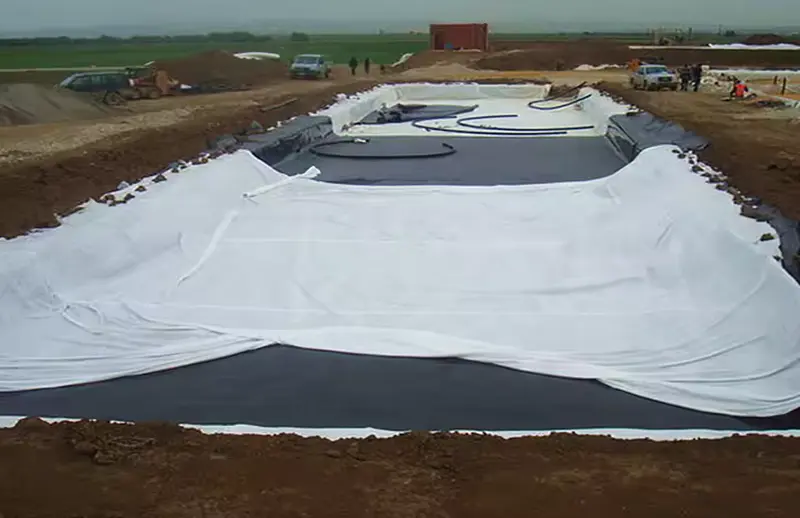

Landfills & Erosion Control Mats
Drainage Systems & Trench Liners
Retaining Walls & Steep Slope Reinforcement
Parking Lots & Sport Fields
Coastal and Riverbank Protection
China Geotextile Membrane
China Geotextile Membrane
China Geotextile Membrane
China Geotextile Membrane
China Geotextile Membrane’s Range
Woven Geotextiles
Manufacturing: Made by interlacing high-tenacity yarns in a systematic pattern.
Characteristics: High tensile strength, low elongation, and excellent load-bearing capacity.
Ideal For: Heavy-duty separation and reinforcement applications like road bases, embankments, and foundations.
Non-Woven Geotextiles
Manufacturing: Produced by mechanically or thermally bonding a random matrix of synthetic fibers.
Characteristics: Excellent for filtration, separation, drainage, and protection. They are typically thicker and more felt-like.
Ideal For: Drainage systems, landfill liners, erosion control, asphalt overlay, and underlayment protection.
China Geotextile Membrane’s Advantages
High-Quality Material: Manufactured from virgin, UV-stabilized polypropylene for superior resistance to chemicals, rot, and biological degradation.
Durability: Engineered for long-term performance in the most demanding environments, from acidic soils to aquatic applications.
Permeability: Controlled pore size ensures optimal water flow (filtration) while preventing soil migration.
Customization: Available in various roll dimensions, weights, and tensile strengths to meet your exact project specifications.
