China Geocell
China Geocell are also widely used in erosion control and slope stabilization projects, providing a cost-effective solution to problems such as soil erosion, landslides, and unstable slopes. Additionally, geocells are used in the construction of retaining walls, revetments, and even green roofs, where they provide structural support and enhance drainage. Overall, geocells offer a versatile, durable, and sustainable solution for a wide range of engineering and construction challenges.
| Index Properties | Test Method | Units | Values | |||||||
| Material | – | – | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||

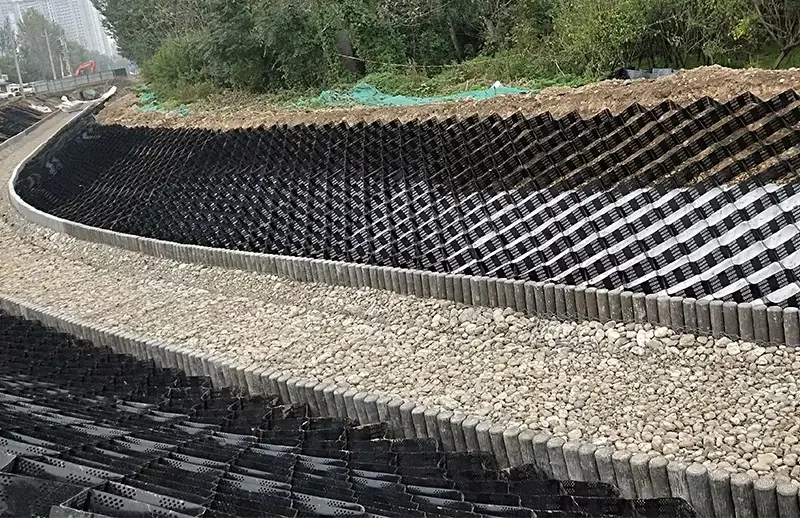

Protection and stabilization of steep slope China Geocells are used to protect slopes from erosion and help stabilize the surface. The cells conform to the terrain and create a three-dimensional wall that prevents soil particles from moving laterally. This helps prevent landslides and keeps the slope stable.
In addition, geocells reduce the amount of material required to stabilize a slope, which saves time and money. They can also be installed quickly and easily, without the need for heavy equipment.
Geocells are widely used in road construction to prevent erosion on steep grounds. In one project, a crew of four people was able to install over 11,000 square meters of geocellular reinforcement in just two days.
Protective linings of channels and hydraulic structures
China Geocells are also used as protective linings for channels and other hydraulic structures. The cells form a three-dimensional wall that prevents soil particles from entering the waterway and causing pollution.In addition, the cells help reduce the erosion of the channel bed and sides. This extends the life of the structure and helps keep it in working order.
Channel linings made with geocells are also less likely to clog, which can lead to flooding. The smooth walls of non-perforated geocells prevent dirt and debris from building up on the surface, while perforated geocells allow water to flow through, removing any buildup that does occur. Geocells have been used to line over 100 kilometers of channels in Europe alone.

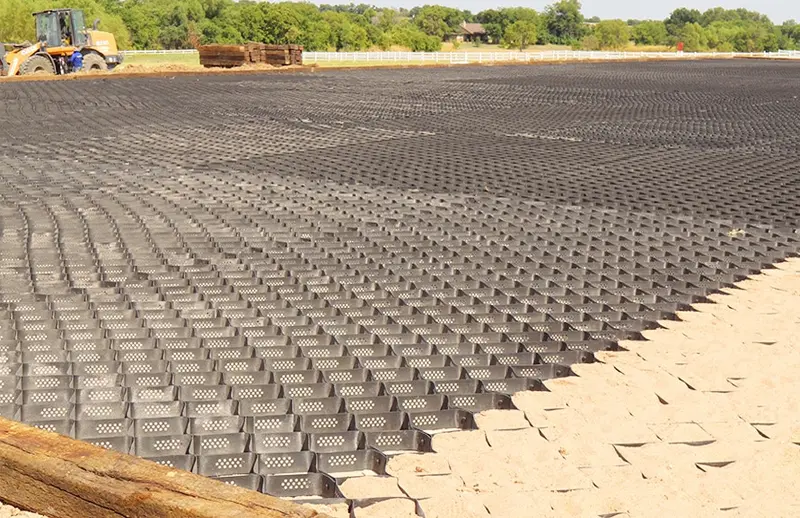

Static and dynamic load support on weak subgrade soils
China Geocells are also used to support static and dynamic loads on weak subgrade soils. The cells create a three-dimensional grid that distributes the load over a larger area, which helps prevent soil failure. In addition, the perforations in the strips allow water to flow through, which helps keep the soil moist and prevents it from becoming compacted. This increases the stability of the soil and reduces the risk of failure.
Geocells are an effective way to support heavy loads on weak soils. In one project, they were able to support a load of up to 400 kilograms per square meter without causing any damage to the underlying soil.
Multi-layered earth-retaining and water-retaining gravity structures
China Geocells can also be used to create multi-layered earth-retaining and water-retaining gravity structures. The cells form a three-dimensional grid that helps distribute the load over a larger area, which reduces the risk of failure.
In addition, the perforations in the strips allow water to flow through, which helps keep the soil moist and prevents it from becoming compacted. This increases the stability of the soil and reduces the risk of failure.
Multi-layered structures made with geocells are an effective way to retain earth and water. In one project, they were able to retain up to 900 liters of water per square meter without causing any damage to the underlying soil. Geocells are a versatile solution that can be used in several applications to stabilize slopes and retain earth and water.
Durable infrastructure
Geocells are widely utilized in civil engineering for road and pavement construction because they provide a flexible basis while keeping the soil intact. They prevent most of the stress cracking that happens in paved roads due to their greater load distribution capabilities. In addition, they help to keep the surface level by adjusting to thermal expansion and contraction. This extends the life of the pavement and reduces the need for repairs.
Geocells have also been used in airport runway construction because of their ability to bear heavy loads without damage. The cells distribute weight evenly over a large area, which prevents cracking and increases the lifespan of the runway.
Enhanced slope protection
Even on steep slopes, a geocell grid is a more durable alternative to stone pitching or mulch matting. It keeps the soil from eroding without the need for pricey supplies or professional work.
The cells form a three-dimensional grid that helps distribute the load over a larger area, which reduces the risk of failure.
In addition, the perforations in the strips allow water to flow through, which helps keep the soil moist and prevents it from becoming compacted. This increases the stability of the soil and reduces the risk of failure. The cells are filled with soil and vegetation, which helps to further stabilize the slope. In addition, the roots of the plants help to anchor the soil in place.
Environmentally friendly
A cellular confinement system is an environmentally acceptable approach to construct green slopes or retaining wall systems. Without considerable quarrying, the geocells can be filled with plants, concrete, or locally obtained materials such as dirt or gravel. Using locally produced products has a greater beneficial impact on the environment since it reduces your carbon footprint.
Today, environmental friendliness is a top priority. Geocells offer a green solution that is environmentally friendly and sustainable.
Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.
